I22J 12.2" Rugged Tablet | Windows 11 Pro, N5100, 4G LTE | Arrvel

Why Choose the Arrvel I22J?

More screen space. Rugged protection. Built for everyday work in warehouses, factories, and the field.

01

See More. Work Comfortably.

Review documents, maps, and inspection details on a 12.2-inch Full HD display with 650-nit brightness.

02

Bring Windows to the Job

Manage inventory, digital forms, and work orders with Windows 11 Pro and an Intel® Celeron® N5100 processor.

03

Keep Your Shift Moving

Swap the removable battery while the built-in battery keeps your tablet running, helping reduce downtime.

04

Streamline Barcode Capture

Choose the optional Honeywell N4680 1D/2D scanner for inventory checks, order picking, and goods receiving.

Certifications & Standards

IP65 MIL-STD-810G CE FCC CCC
  • 18 Years

    Focused on industrial rugged solutions

  • 1M+

    Devices in annual production capacity

  • Windows & Android

    Industrial device options

  • 800+

    Patents & certifications

  • Business Purchasing

    Bulk orders & procurement support

Tested for the Toughest Jobs

Vibration, 4 ft (1.22 m) drops, ball impact, extreme temperatures, and more. See how the Arrvel Rugged tablet is put to the test.

Arrvel I22J rugged Windows tablet with IP65 protection, MIL-STD-810G durability and -20°C to 60°C operating temperature
Arrvel I22J rugged tablet powered by Intel Celeron N5100 quad-core processor with up to 2.8GHz frequency
Arrvel I22J rugged Windows tablet with Wi-Fi connectivity for mobile and outdoor applications
Arrvel I22J rugged tablet with 6300mAh removable battery and 1000mAh internal battery for extended operation
Arrvel I22J rugged Windows tablet with built-in GPS and GLONASS for positioning and field navigation
Arrvel I22J rugged tablet designed for portable use in warehouses, field work and outdoor applications
Arrvel I22J rugged tablet accessories including power adapter, carry handle, hand strap and mounting bracket
Arrvel I22J 12.2-inch rugged Windows tablet technical specifications including processor, display, battery, connectivity and interfaces

 Product details

Specification
Dimensions
289.9 mm ×196.7 mm ×21.2 mm
Weight
1230g
Color
Black
Display
Size: 12.2 inch, Resolution: 1200x 1920, Brightness: 650 nits
Touch Panel
10-point capacitive touch screen, supports active pen
Ports
USB 2.0 x1USB 3.0 x2Type C x1∮3.5mm standard earphone jack x1SIM Card x1TF Card x1DC 12V/4A ∮4mm Power connector x1HDMI 2.0a mini x1DB9 (RS232) x1DB9 (RS485) x1RJ45 x112PIN Pogo Pinx1
2D Scanner
Honeywell N4680 hardcode, Optical resolution: 5mil, scan speed: 50 times/s
Processor
Intel® Celeron® Processor N5100,4 cores and 4 threads, maximum frequency 2.8GHz
Operating System
Windows 11 Pro
Memory+Storage
RAM: 8GB (DDR4L), ROM: 128GB (SSD)
Camera
Front 200W, Rear 800W
Battery
Build in Lithium-ion polymer battery 7.4V/1000mAhRemovable Li-polyment Battery 7.4V/6300mAh
WiFi
802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI
WAN
4G LTE
Bluetooth
Bluetooth 5.0
GNSS
GPS
IP Ratings
IP65
Resistance
1.22m drop MIL-STD-810G
Temperature
Working temperature: -20°C to 60°CStorage temperature: -30 °C to 70 °CHumidity:95% Non-Condensing
Certification
IP65, CE , FCC, CCC, RoHS, MIL-STD-810H, UN38.3, MSDS, IEC 62133
2D Imager Scanner
Honeywell N4680
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR-code, Micro QR-code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Case
Warehouse & Logistics,Manufacturing, Field Service, Construction, Transportation & Fleet Management,Utilities & Infrastructure...

Application Cases

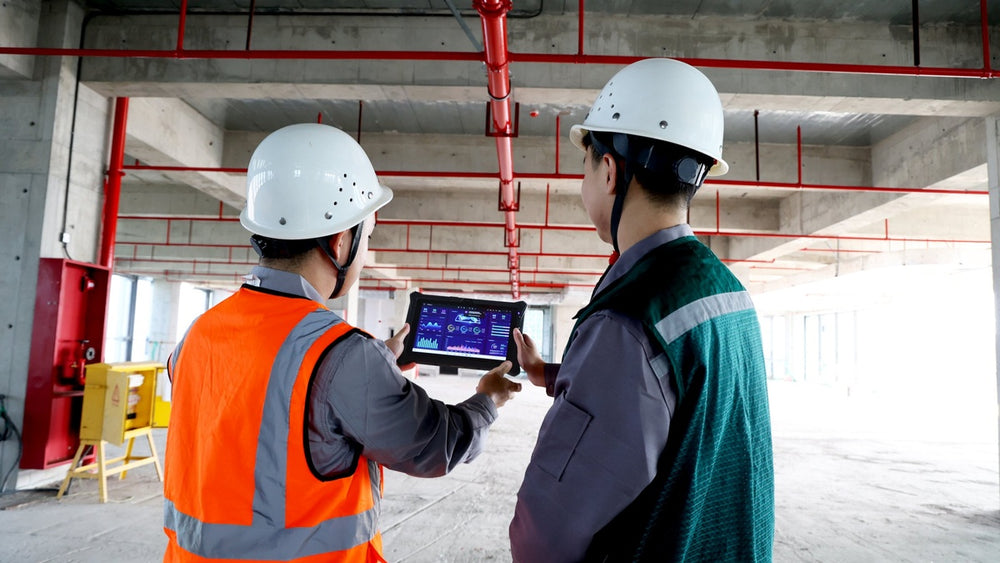

Construction

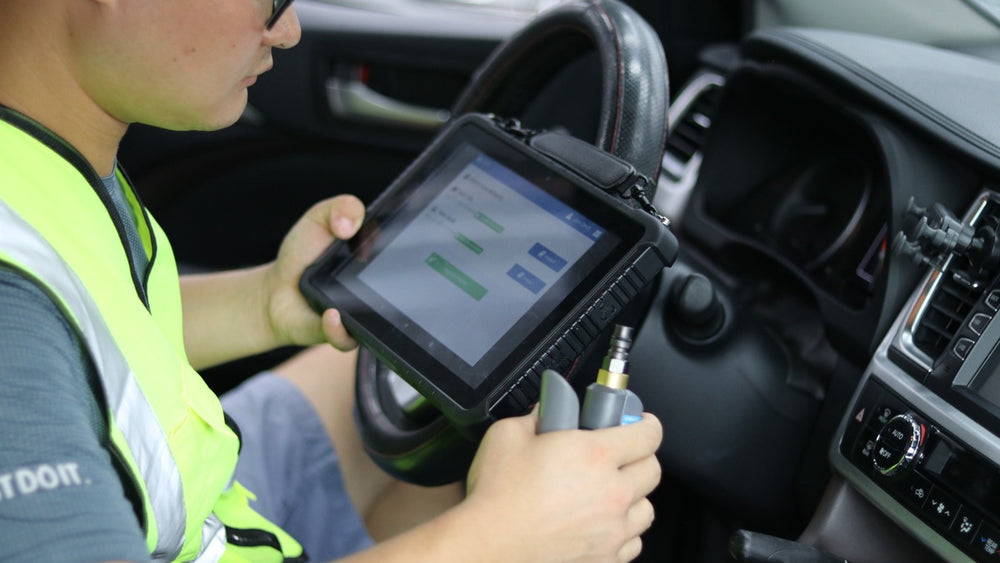

Vehicle Operations

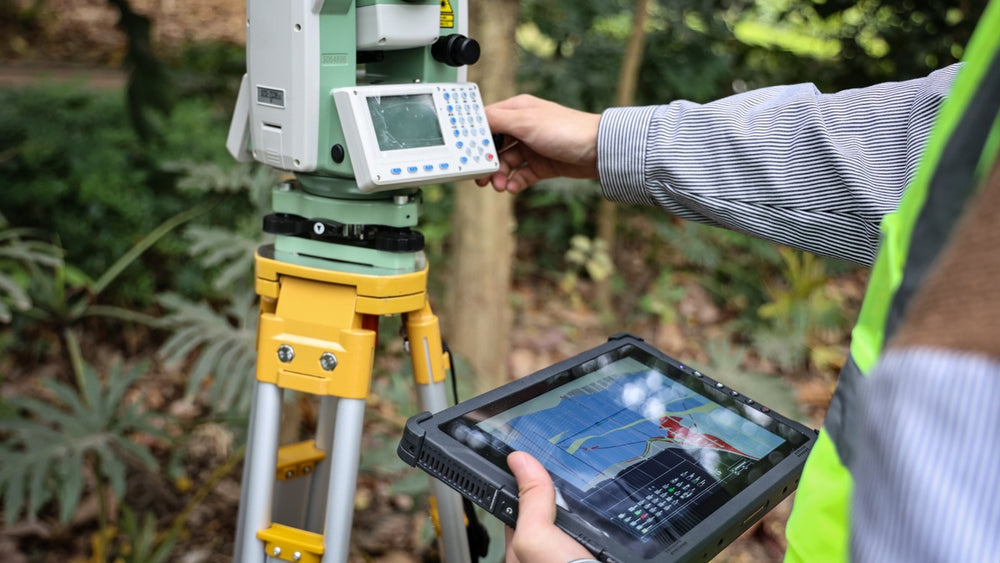

GPS Surveying

Field Service

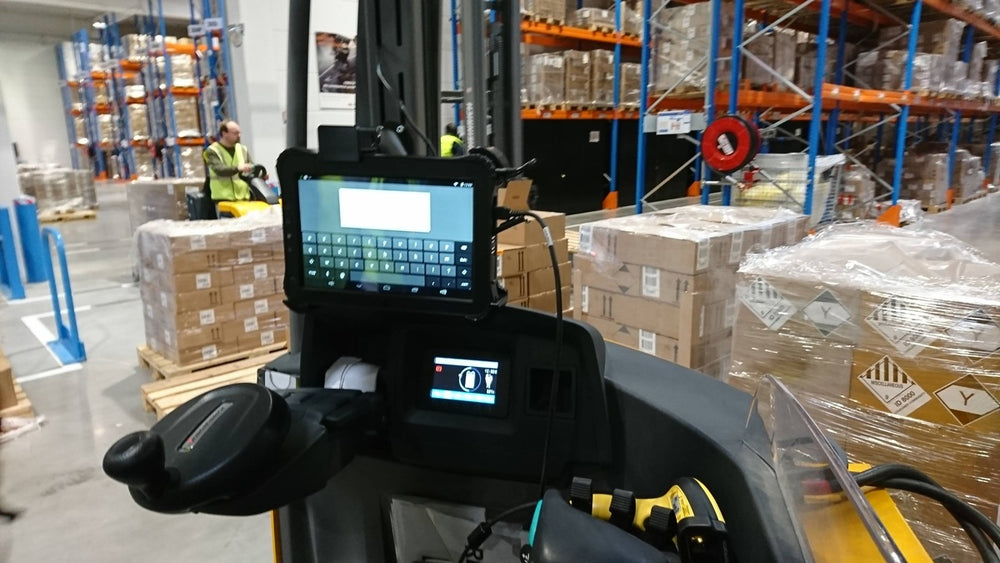

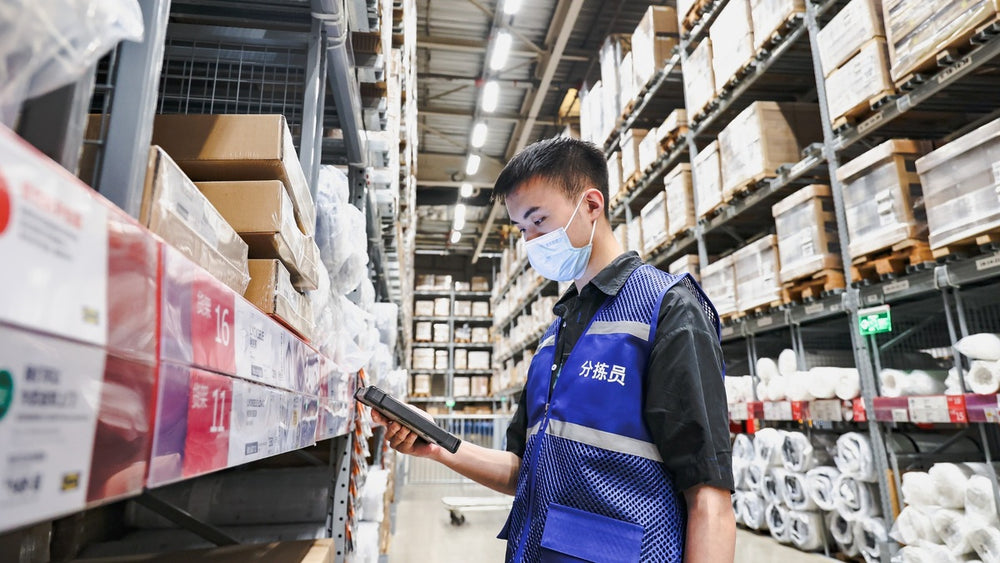

Warehousing

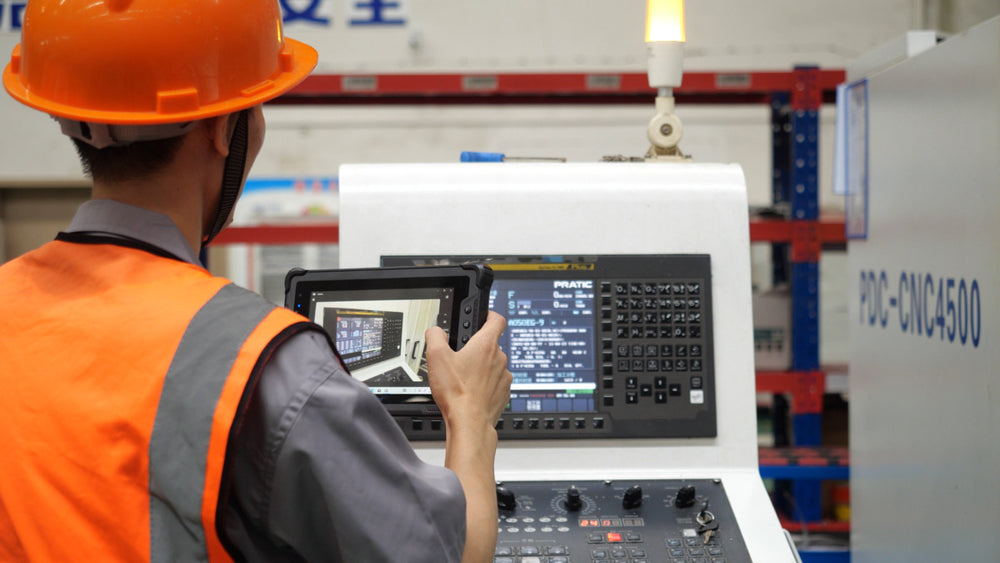

Manufacturing

Frequently Asked Questions

How long does delivery take?

Shipping via DHL or UPS typically takes 2–4 business days for delivery. Once your order has shipped, we will send you a tracking number via email. Most products are dispatched from warehouses in China or the United States. If the specific configuration you have chosen is in stock within your region, delivery may be even faster.

What is your return policy?

If the I22J is unused, remains in its original condition, and the packaging is intact, you may return it for a refund within 30 days of receipt. The buyer is responsible for return shipping costs, and returns should be sent to our U.S. warehouse address. We will process your refund within 7 business days of receiving the returned item.

What does the warranty cover, and how do repairs work?

Each I22J unit comes with a 1-year warranty; you may also extend the warranty period to 3 years for an additional fee of $149. The warranty covers "manufacturing defects and hardware failures that occur under normal use." It does not cover "physical damage resulting from improper use, unauthorized modification, or disassembly of the device, nor does it cover liquid damage that exceeds the scope of the IP65 ingress protection rating." To request repairs, please contact our customer support team and provide your order number.

What payment methods do you accept?

You can pay at checkout with Visa, Mastercard, American Express or JCB, or by wire transfer to our company account.

How long does the battery last, and can I swap it while working?

The removable 6300mAh battery runs for about 8.5 hours under [test conditions, e.g. 50% brightness, mixed use]. A built-in 1000mAh battery keeps the tablet running while you swap the main battery, so you can change it without shutting down. Spare batteries ($70) and a quad battery charger ($119) are available as accessories.

Will my existing software work?

The I22J runs Windows 11 Pro on an Intel N5100 processor, so standard Windows software, including most WMS, ERP and field-service applications, runs without modification.

How do I know the I10A is built to last?

The I10A is tested to MIL-STD-810H, including 1.22 m drops, and rated IP65 against dust and water jets. It operates from -20°C to 60°C and carries IP65, CE, FCC, RoHS, UN38.3 and IEC 62133 certifications.
