How to Choose an Android Industrial Panel PC for HMI and Kiosks

Choosing an Android industrial panel PC starts with the software and the installation—not just the processor or screen size. A factory operator terminal, a warehouse workstation and a public-facing kiosk may all use a touchscreen, but each places different demands on the computer behind it.

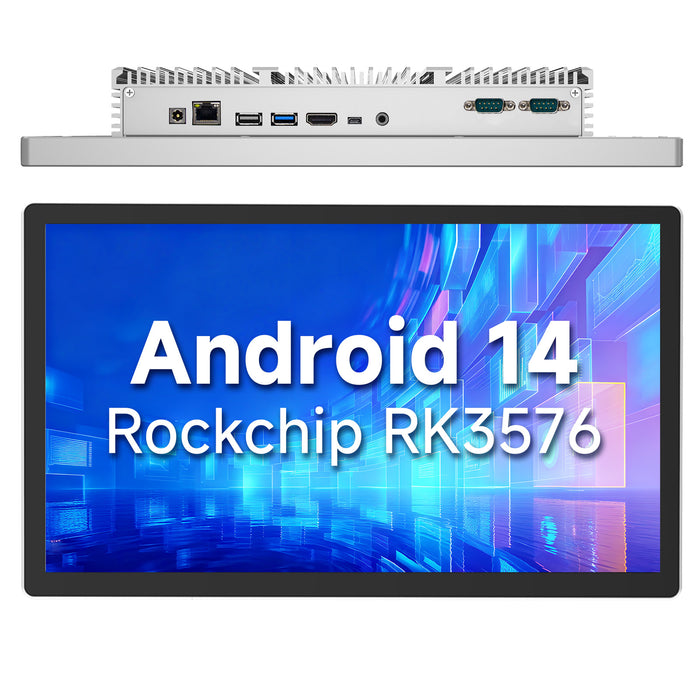

The right choice should support your application, connect to the required equipment and remain usable in its intended environment. This guide walks through those decisions, using the Arrvel A15L6 as a hardware example.

1. Confirm That Android Fits Your Application

Before comparing hardware, identify exactly what will run on the panel PC. Will operators use a native Android app, a browser-based dashboard or a desktop HMI application?

An Android panel PC is a candidate when your software is built for Android or your interface runs in a compatible browser. Examples include digital work instructions, production dashboards, visitor information and interactive product catalogs.

If your workflow depends on a Windows-only application or peripheral driver, an Android device cannot replace it simply because the touchscreen and ports look similar.

For example, the Arrvel A15L6 runs Android 14. That establishes the operating-system baseline, but compatibility with your exact application still needs to be verified.

A useful first test: install the intended application and complete a real task from start to finish, including any scanning, printing or equipment communication.

2. Size the Processor, Memory and Storage Around the Workload

A screen showing a simple check-in form has different computing needs from one displaying multiple dashboards, video and background services.

List the tasks the device must perform simultaneously. Include management software, local data storage and background synchronization as well as the visible interface.

The A15L6 specification lists a Rockchip RK3576 octa-core processor, 4GB RAM and 64GB onboard storage. These are starting points for evaluating a configuration, rather than proof that every HMI application will run smoothly.
During evaluation, check:

• How quickly screens load and respond to touch.
• Whether performance changes when background services are active.
•  How much storage the application, offline content and logs consume.
• Whether the system recovers correctly after an application restart.

Use the workload you expect in production. A demonstration screen with a few sample values may not represent a complete operator interface.

3. Choose the Display for the Operator and the Location

For an industrial touchscreen computer, display selection includes more than diagonal size. Resolution, brightness, touch operation and viewing distance all affect usability.

Screen Size and Resolution

A compact interface with a few large controls may fit a smaller display. A dashboard showing alarms, trends and several navigation areas may need more space.

The A15L6's standard 15.6-inch configuration has a 1920 × 1080 display and 10-point capacitive touch. Custom screen sizes are also available, with resolutions listed in the supplied specification:

Test the application at its actual resolution and scaling. A larger screen does not automatically fix small buttons or poorly arranged controls.

Brightness and Touch Conditions

The A15L6 is specified at 250 nits. Plan around indoor use and assess readability under the lighting at the installation site. Do not assume that an indoor display will be readable in direct sunlight.

If operators wear gloves or the screen may be wet, ask for confirmation of those exact operating conditions. A specification of “capacitive touch” alone does not establish glove or wet-touch performance.

4. Match Ports to Equipment—and Protocols to Software

An Android panel PC for HMI may need to communicate with a controller, receive scanner input and connect to a factory network. A kiosk may need a printer, reader or other accessory.

Make a connection list before selecting the computer.

The A15L6 specification lists two USB 3.0 ports, one Gigabit Ethernet port and two serial ports. COM2 can be configured between RS232 and RS485 using onboard jumpers. HDMI output is also listed.

The distinction between a port and a protocol is important. An RS485 interface does not, by itself, establish support for Modbus RTU in your application. Likewise, an Ethernet socket does not guarantee compatibility with every PLC.

For an integration request, send the supplier the equipment model, required protocol and intended Android software. That is more useful than asking only whether the panel PC “connects to a PLC.”

5. Check Protection, Temperature and Installation Together

Industrial panel PCs often specify protection for the front panel. This is particularly relevant when the computer is installed through a cabinet or machine panel.

The A15L6 product page specifies an IP65-rated front panel. This should not be treated as a waterproof rating for the rear connections or the entire installed system.

Review the installation as a whole:

• Can moisture or dust reach the rear of the device?
• Does the mounting arrangement provide the required seal?
• Is there enough space for cables and service access?
• Will nearby equipment raise the temperature inside the enclosure?

The A15L6's specified operating range is -10°C to 50°C, with 5–95% relative humidity under non-condensing conditions. Evaluate the conditions around the installed computer, including enclosure heat, rather than relying only on the room temperature.

Before cutting a panel, obtain the mechanical drawing for the exact screen size and configuration. Confirm the cutout, fixing method, depth and connector clearance.

6. Plan Power and Recovery for Unattended Operation

An Android panel PC for kiosk use must be manageable when no technician is standing beside it.

The A15L6 uses a 12V DC input, and its listed adapter accepts 100–240V AC and provides 12V/4A DC output. Match the installation to the specified power input; do not assume that a common industrial supply voltage is directly supported.

Build a recovery test into the pilot:

•  Restart the device and check how the application launches.
• Interrupt the network and confirm what the operator sees.
• Restore connectivity and check whether the session resumes correctly.
• Test the application's update and recovery process.
• Confirm how authorized staff exit kiosk mode or access maintenance controls.

Automatic startup, kiosk restrictions and remote management depend on the selected software and device configuration. Confirm the complete arrangement before committing to a rollout.

7. Evaluate a Sample Before Ordering Multiple Units

A sample deployment should answer a specific question: can this hardware run your actual workflow reliably in the intended location?

For a factory station, test equipment communication and the screens operators use during a normal shift. For a warehouse workstation, test scanner input and order handling. For a kiosk, test the complete visitor journey and recovery from common interruptions.

Record the device configuration, application version, connected peripherals and test results. This makes the approved setup easier to reproduce across additional units.

When requesting a bulk quote, include the screen size, quantity, installation environment, software and peripheral list. Also ask about configuration availability and support for the planned deployment.

Where the Arrvel A15L6 Fits

The A15L6 is worth evaluating for indoor Android-based operator terminals, connected workstations and interactive kiosks that need a fixed touchscreen and industrial interfaces.

Its documented configuration combines Android 14, a Rockchip RK3576 processor, 4GB RAM, 64GB storage, a 15.6-inch Full HD touchscreen, Gigabit Ethernet and configurable serial connectivity. The appropriate choice still depends on the application and installation requirements established above.

Explore the Arrvel A15L6 Android industrial panel PC for product details. For multiple units or custom screen sizes, use the Request Quote form on the product page and share your project requirements.

You can also browse Arrvel industrial panel PCs to compare available models.

Frequently Asked Questions

Can an Android industrial panel PC be used as an HMI?

Yes, when the HMI application supports Android or provides a compatible browser interface. Communication with controllers and other equipment also requires the appropriate software and protocols.

Is Android or Windows better for an industrial panel PC?

Start with the application. Android is a candidate for compatible Android apps and browser-based interfaces. Windows is needed when the required software or drivers depend on Windows. Evaluate the complete software stack before comparing hardware prices.

Does an RS485 port mean the panel PC supports Modbus?

Not automatically. RS485 provides the electrical interface; Modbus support depends on the application or communication software, along with correct configuration and wiring.

Is an IP65 front-panel PC waterproof on every side?

No. A front-panel rating applies to the specified front portion. Rear interfaces and the surrounding installation require their own protection assessment.

What should I test before buying in bulk?

Test the intended application, connected peripherals, display readability, equipment communication, installation fit and recovery after power or network interruptions. Approve the exact configuration you intend to deploy.
