Arrvel K12L2 industrial panel PC for factory automation, monitoring and machine-side control

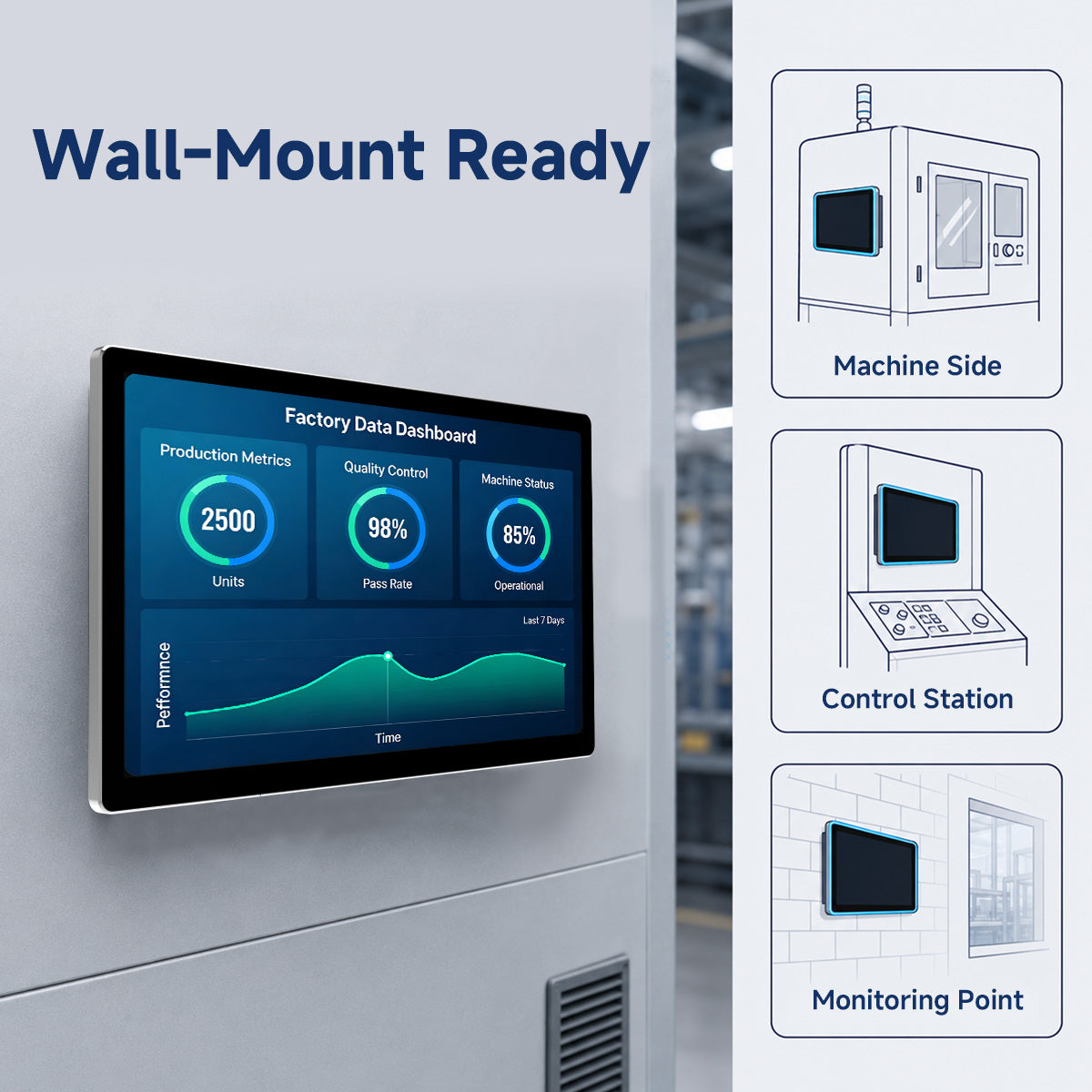

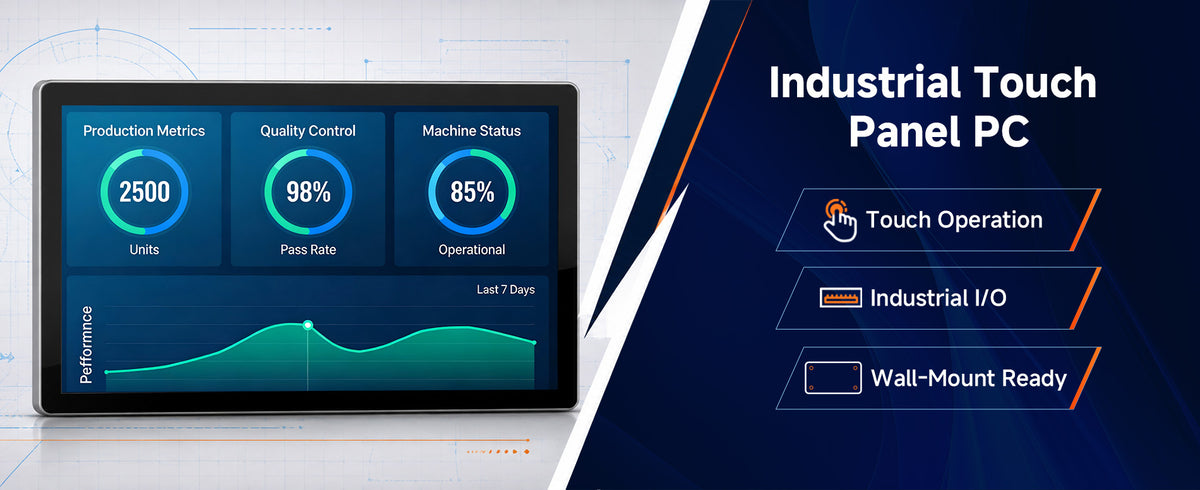

Arrvel K12L2 industrial touch panel PC with touch operation, industrial I/O and wall-mount support

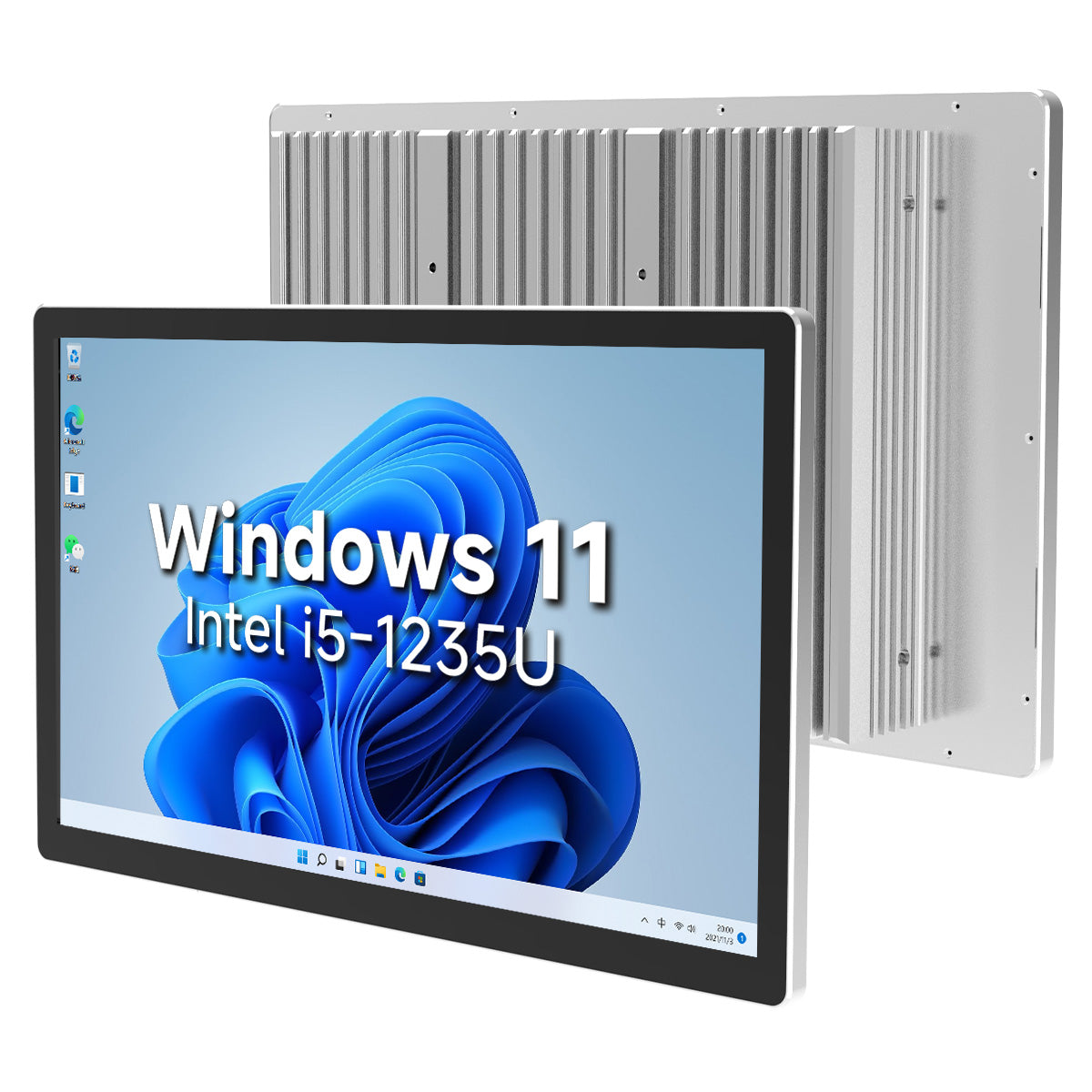

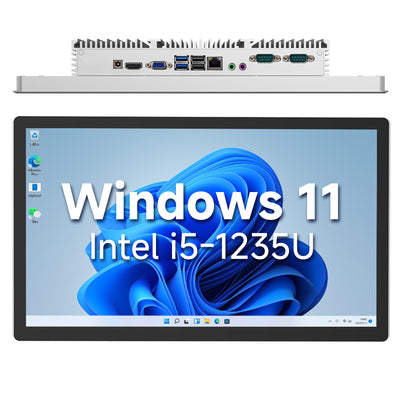

Arrvel K12L2 industrial panel PC with 12th Gen Intel Core i5-1235U, Windows 11 and 8GB RAM

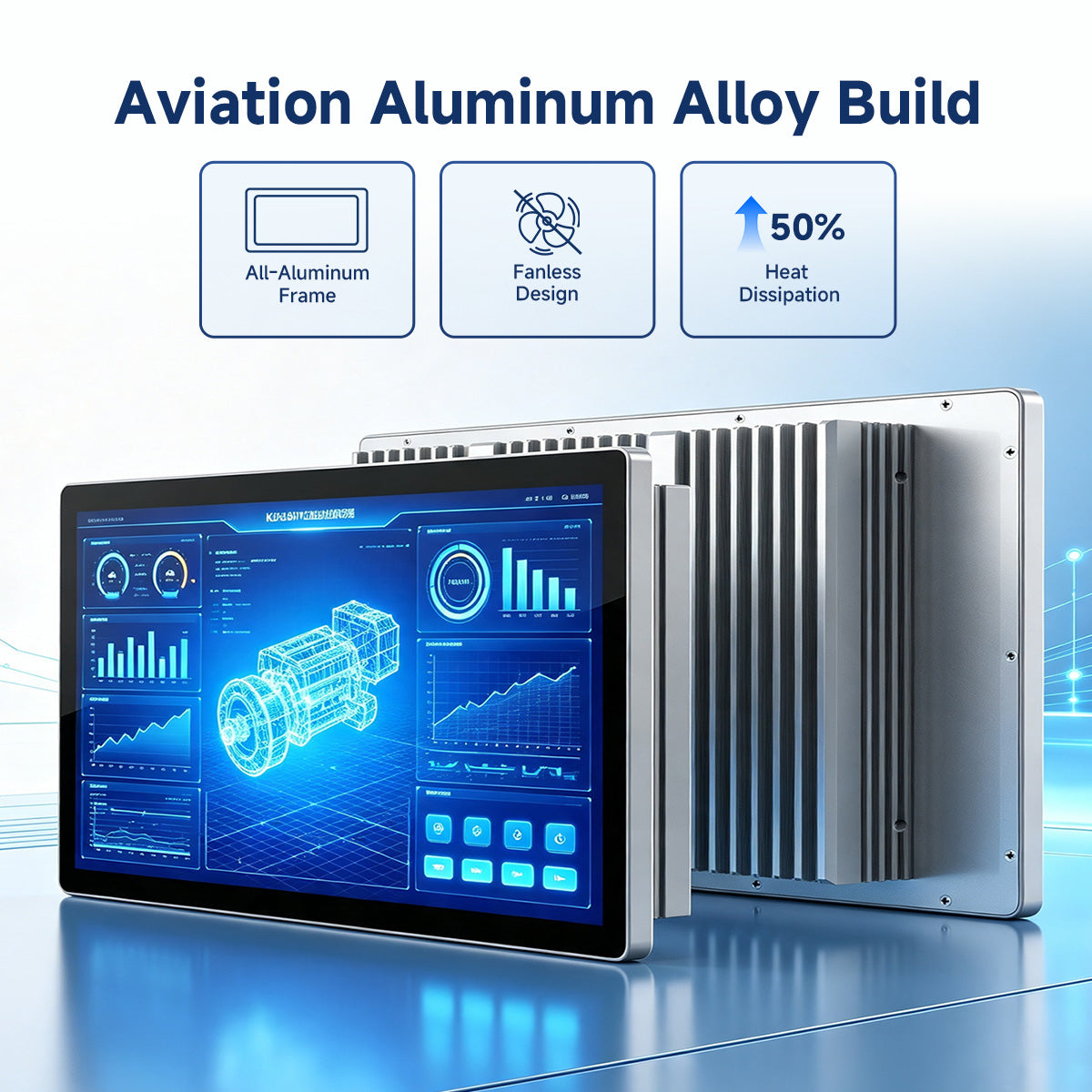

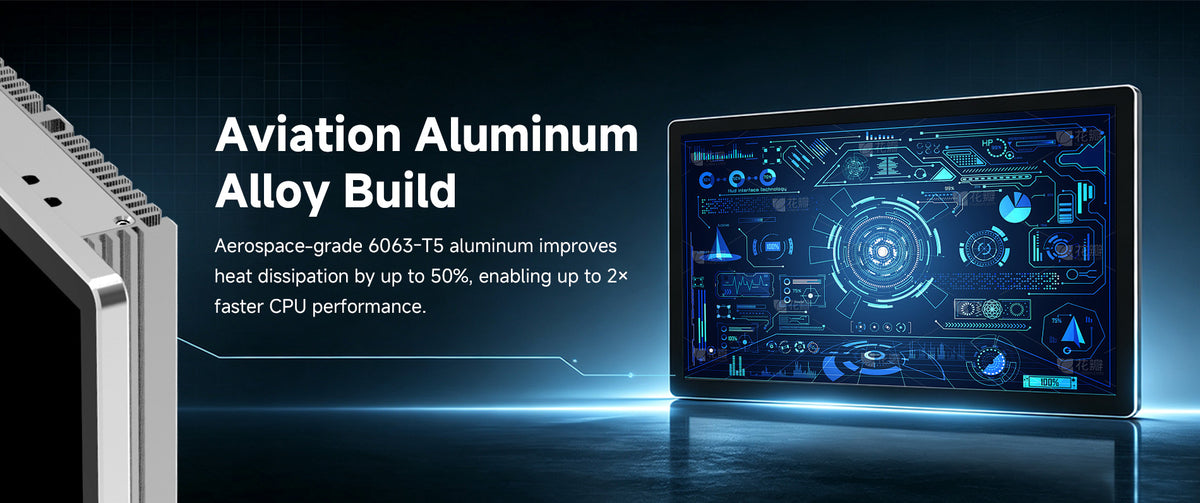

Arrvel K12L2 aluminum industrial panel PC with fanless heat-dissipation enclosure

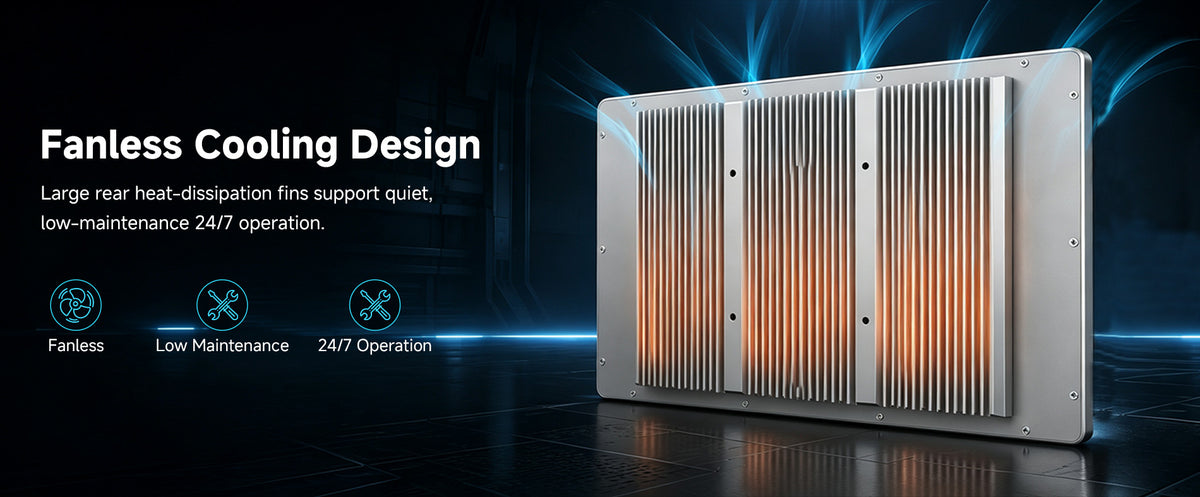

Arrvel K12L2 fanless industrial panel PC with rear heat-dissipation fins for continuous operation
Arrvel K12L2 industrial panel PC for CNC control and machine vision applications
Arrvel K12L2 industrial panel PC for production dashboards, status monitoring and automation control
Arrvel K12L2 touch panel PC for interactive terminals, service counters and self-service applications
Arrvel K12L2 industrial panel PC with FHD touch display, aluminum frame, dual RS232 and wall-mount design

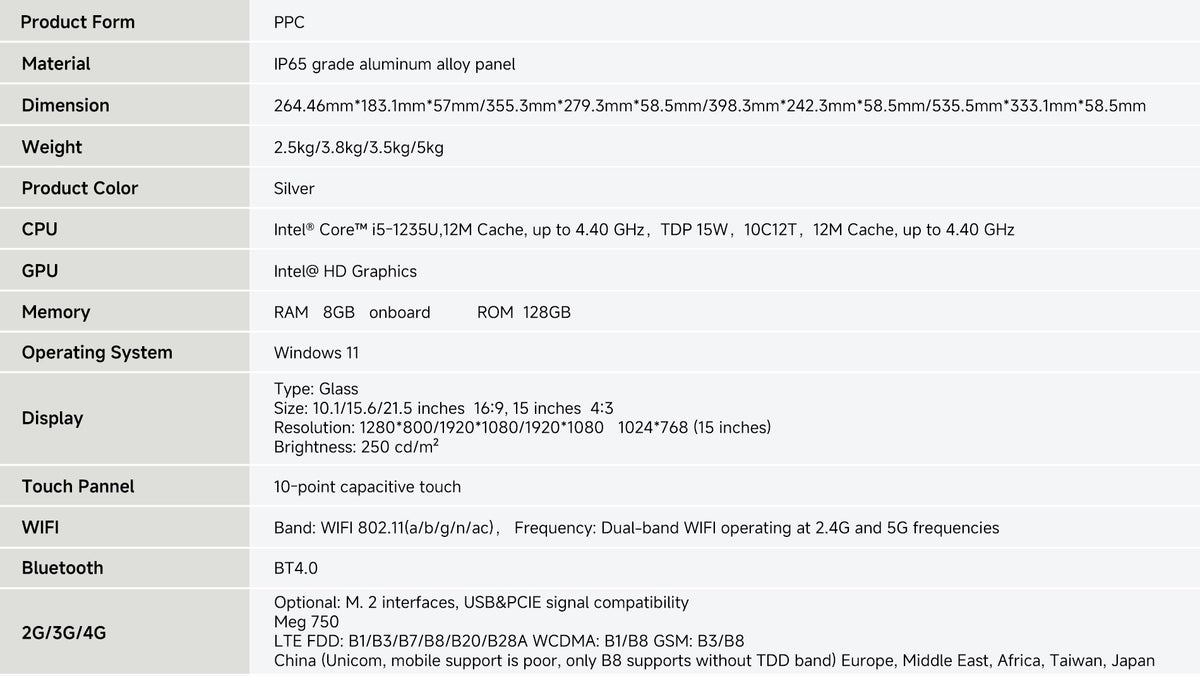

Arrvel K12L2 industrial panel PC specifications including Intel Core i5-1235U, touchscreen, WiFi and memory

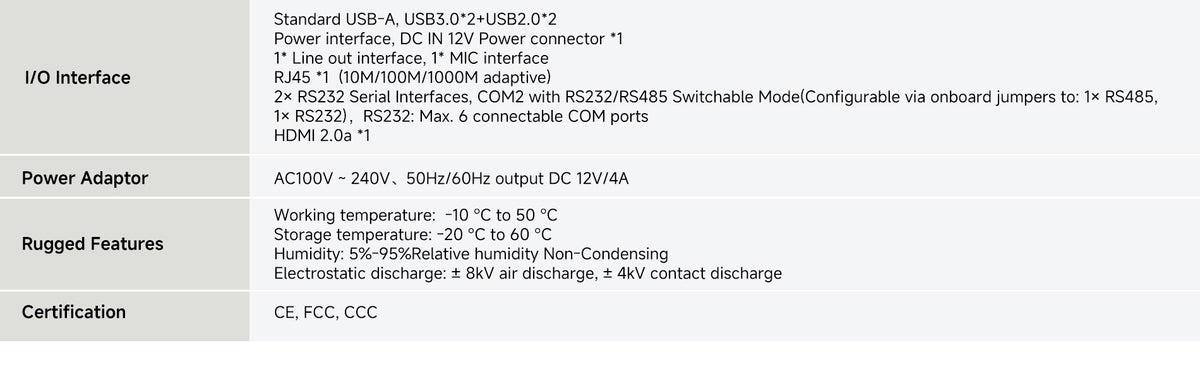

Arrvel K12L2 industrial panel PC I/O, power, operating temperature and certification specifications

Specifications

Features

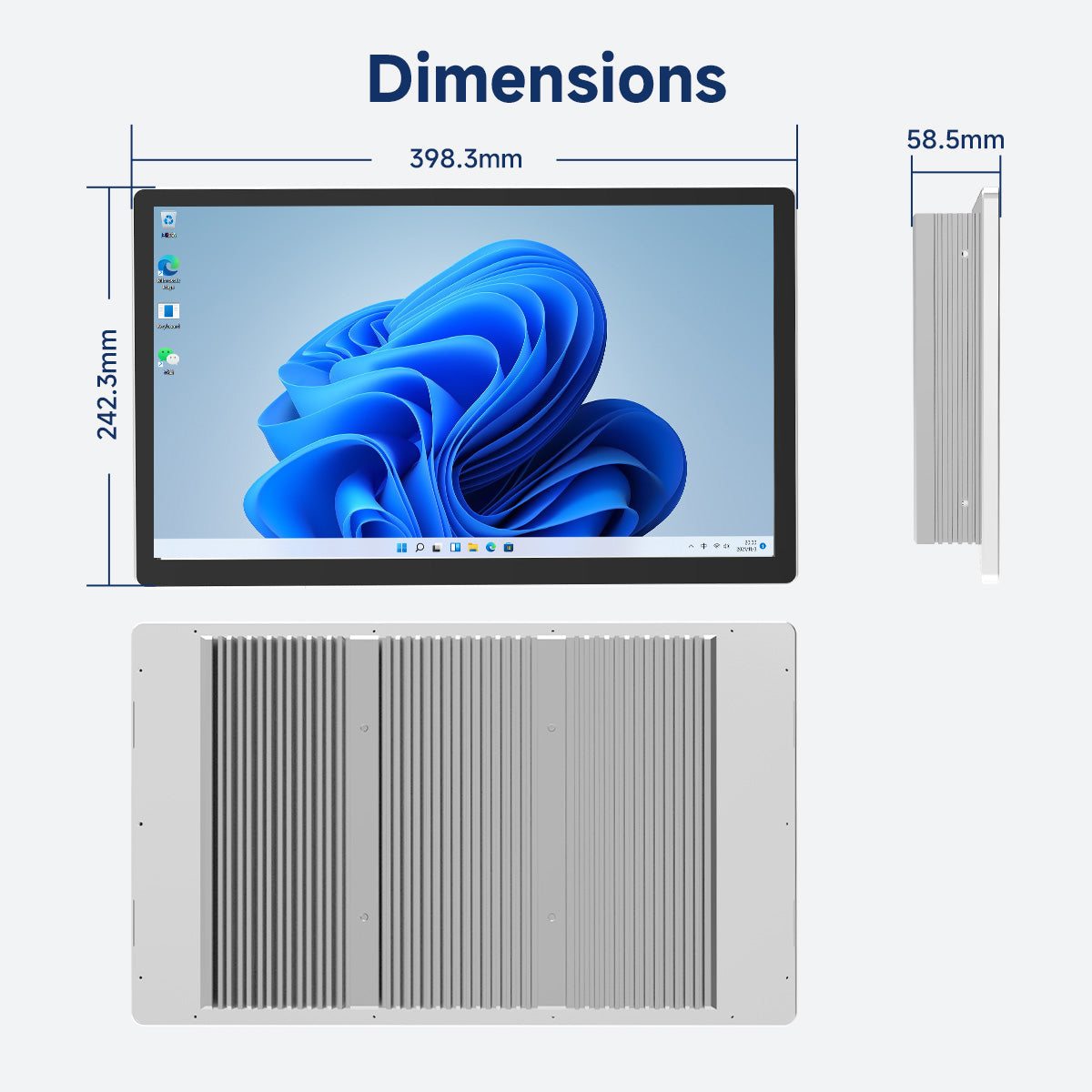

Dimensions
398.3mm*242.3mm*58.5mm
Material

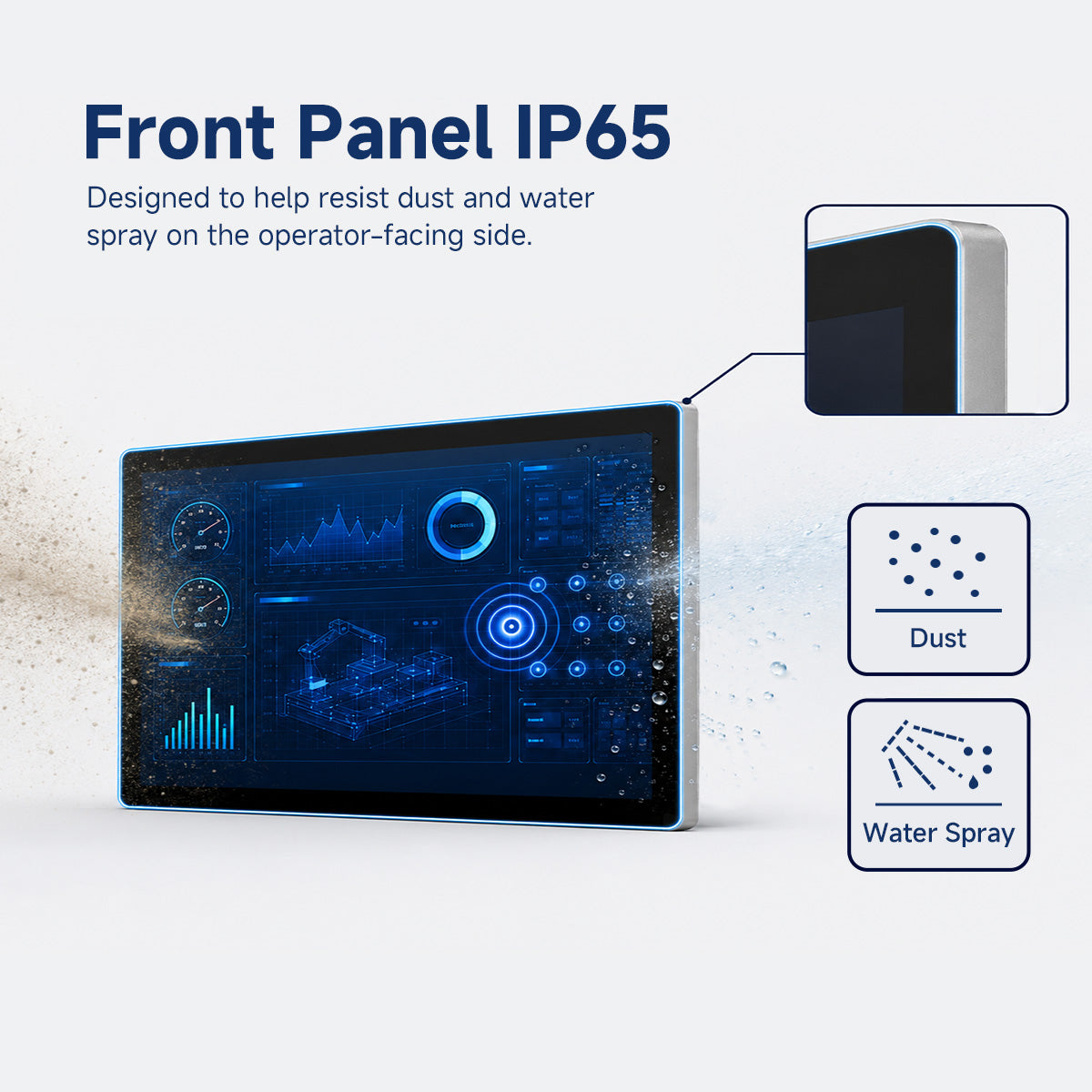

IP65 grade aluminum alloy panel
Weight
3500g
Color
Silver

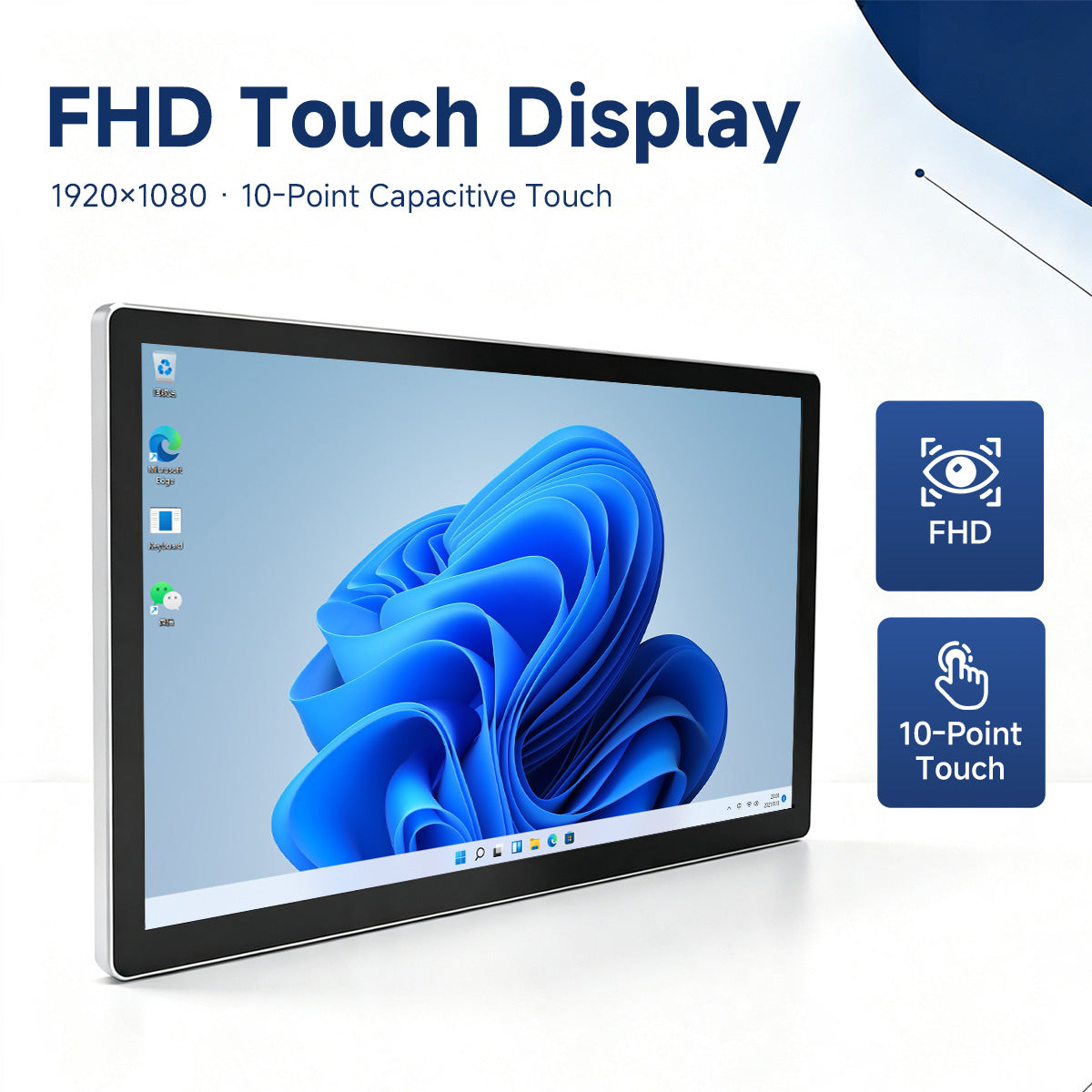

Display
Size: 15.6 inch, Resolution: 1920x 1080, Brightness: 250 nits
Touch Panel
10-point capacitive touch screen
Memory
RAM 8GB ROM 128GB
CPU
Intel® Core™ i5-1235U,12M Cache, up to 4.40 GHz,TDP 15W,10C12T,12M Cache, up to 4.40 GHz
GPU
Intel® HD Graphics integrated graphics
Operating System
Windows 11

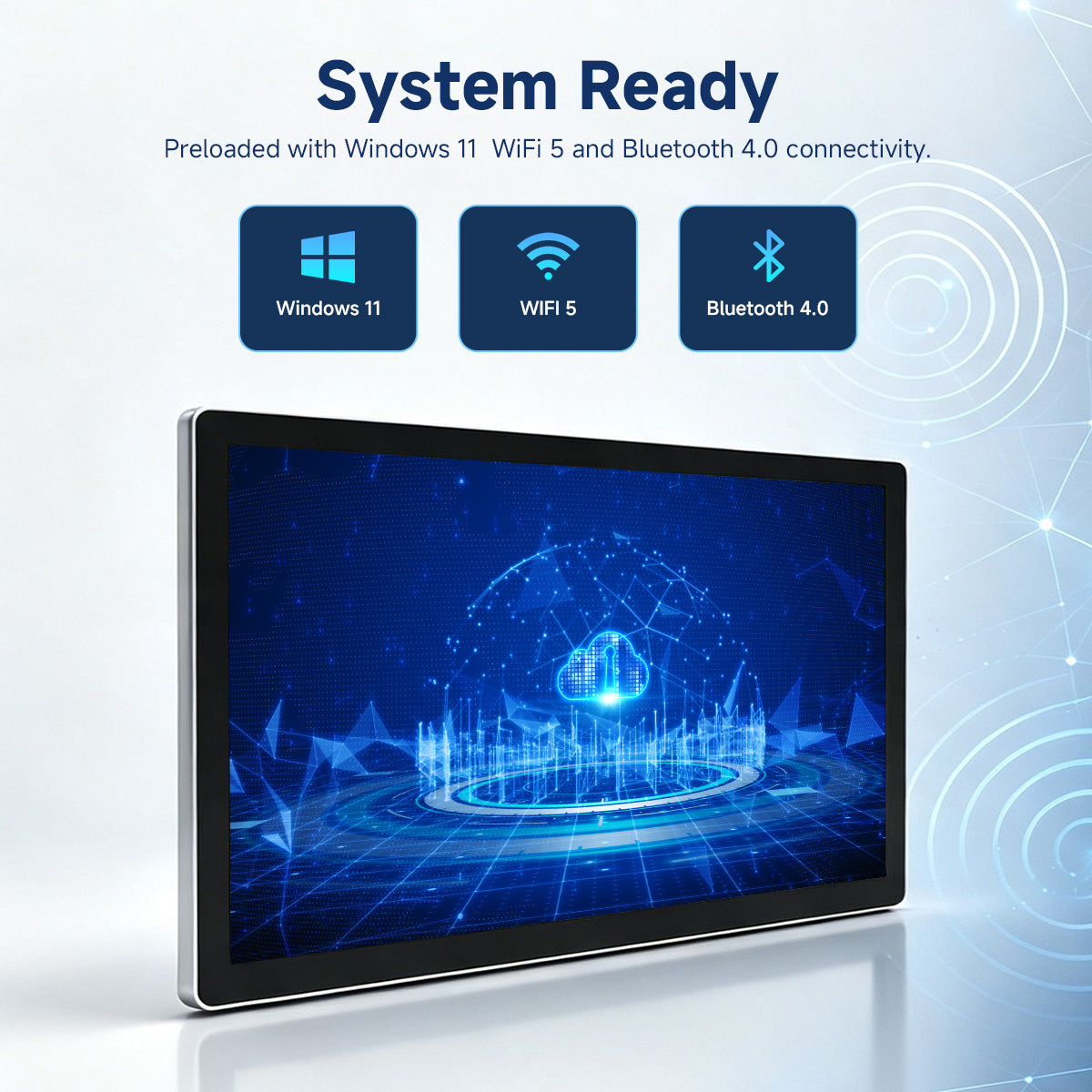

WIFI
WIFI 802.11(a/b/g/n/ac)FrequencyDual-band WIFI operating at 2.4G and 5G frequencies
Bluetooth
BT4.0

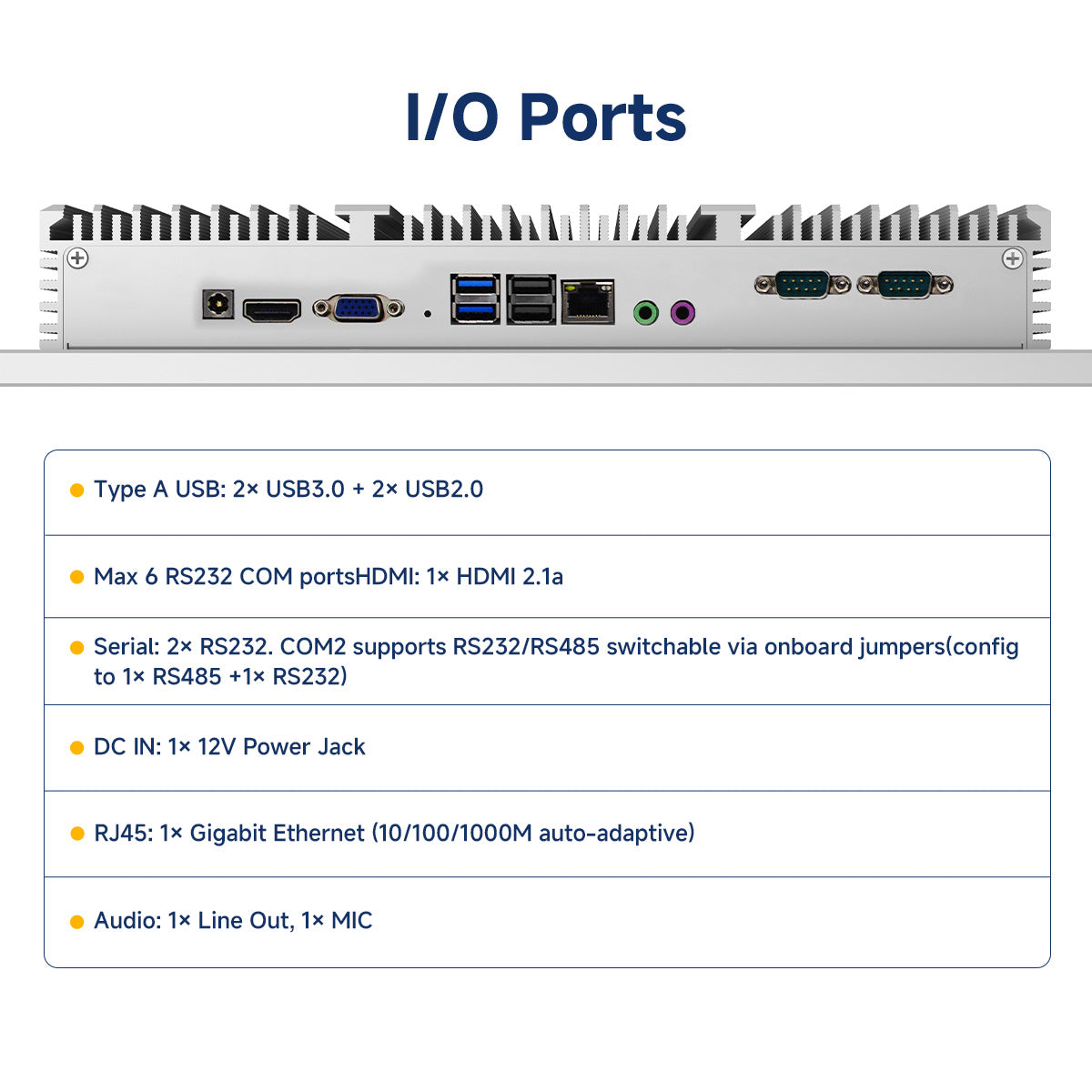

Ports
2*USB3.0,2*USB2.0,1*DC,1* Line out interface, 1* Line in interface,1*RJ45,2× RS232 Serial Interfaces, COM2 with RS232/RS485 Switchable Mode(Configurable via onboard jumpers to: 1× RS485, 1× RS232),RS232: Max. 6 connectable COM ports
Power Adaptor
AC100V ~ 240V、50Hz/60Hz output DC 12V/4A
Rugged Features
Working temperature: -10 °C to 50 °C,Storage temperature: -20 °C to 60 °C,Humidity: 5%-95%Relative humidity Non-Condensing,Electrostatic discharge: ± 8kV air discharge, ± 4kV contact discharge
Certification
FCC,CE,CCC

FAQs

Product Warranty Information

Our products and accessories come with a standard one-year warranty, with the option for customers to upgrade to a three-year warranty. Repairs are provided free of charge for damage not caused by human error during the warranty period.

How soon will the order be shipped after it is placed?

Orders typically arrive within 5 to 7 business days, although some models may be in stock in the customer's country or region. Most models ship from China, usually via express carriers such as DHL or UPS.

Which trading modes are supported?

Customers can choose to pay directly online—we accept credit cards—or you can opt to make an offline wire transfer to our company account.

How to ensure product quality

Arrvel is a sub-brand of a publicly listed company; we have been in business for 16 years and operate our own manufacturing facilities. We not only produce standardized products but also offer customization services to meet customer needs. We guarantee that every product we sell has undergone rigorous testing and earned market recognition.

Does the product purchased by the customer include free shipping?

We ensure that the amount paid for each of your orders includes shipping costs.
