Specifications

Appearance
Dimensions
289.9 mm ×196.7 mm ×21.2 mm
Weight
1230g
Color
Black
Display

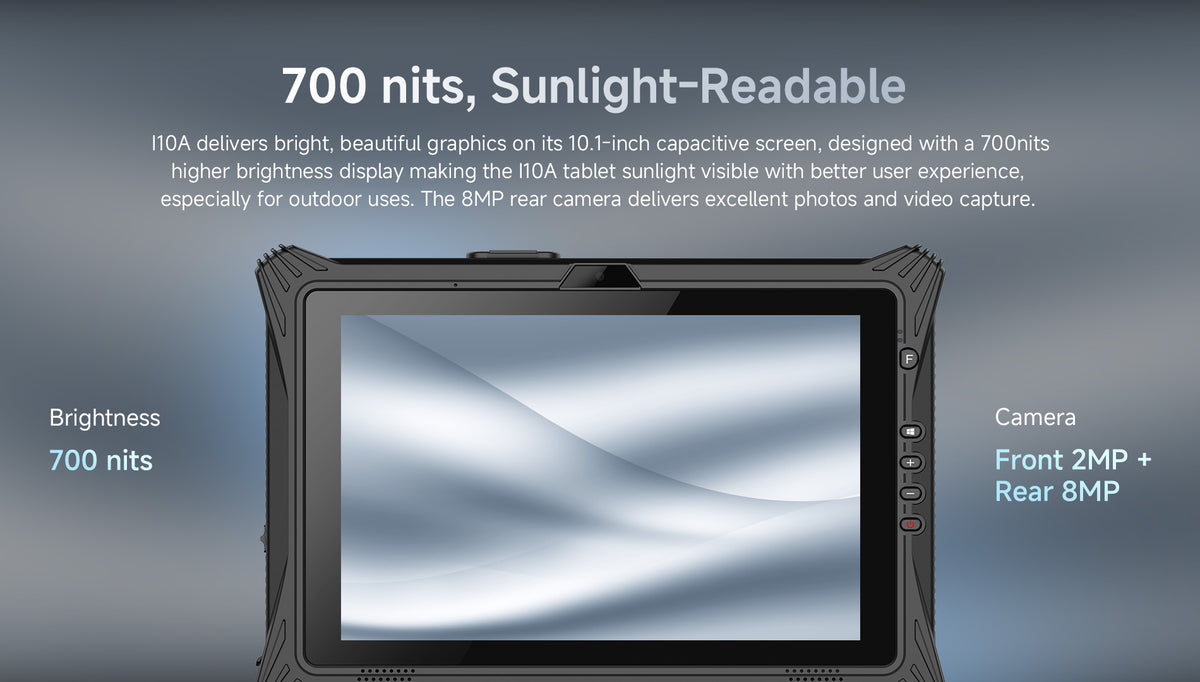

Size: 10.1 inch, Resolution: 1200x 1920, Brightness: 700 nits
Touch Panel
10-point capacitive touch screen, supports active pen
Ports
Micro SD card x1SIM card x1USB 3.1(Type-A)x1USB 3.0(Type-C)x13.5 mm audio jack x1RJ45 x1(standard configuration)HDMI 2.1a mini x15.5 mm DC in jack x112-pin Pogo Pin x1 (Charge&USB)
Extension modules(1 out of 4)
Ethernetinterface:RJ45 x 1(Standard),Serial port:DB9 (RS232) x 1,USB2.0:USB 2.0 x 1
2D Scanner
Honeywell N3680 hardcode, Optical resolution: 5mil, scan speed: 50 times/s
Performance

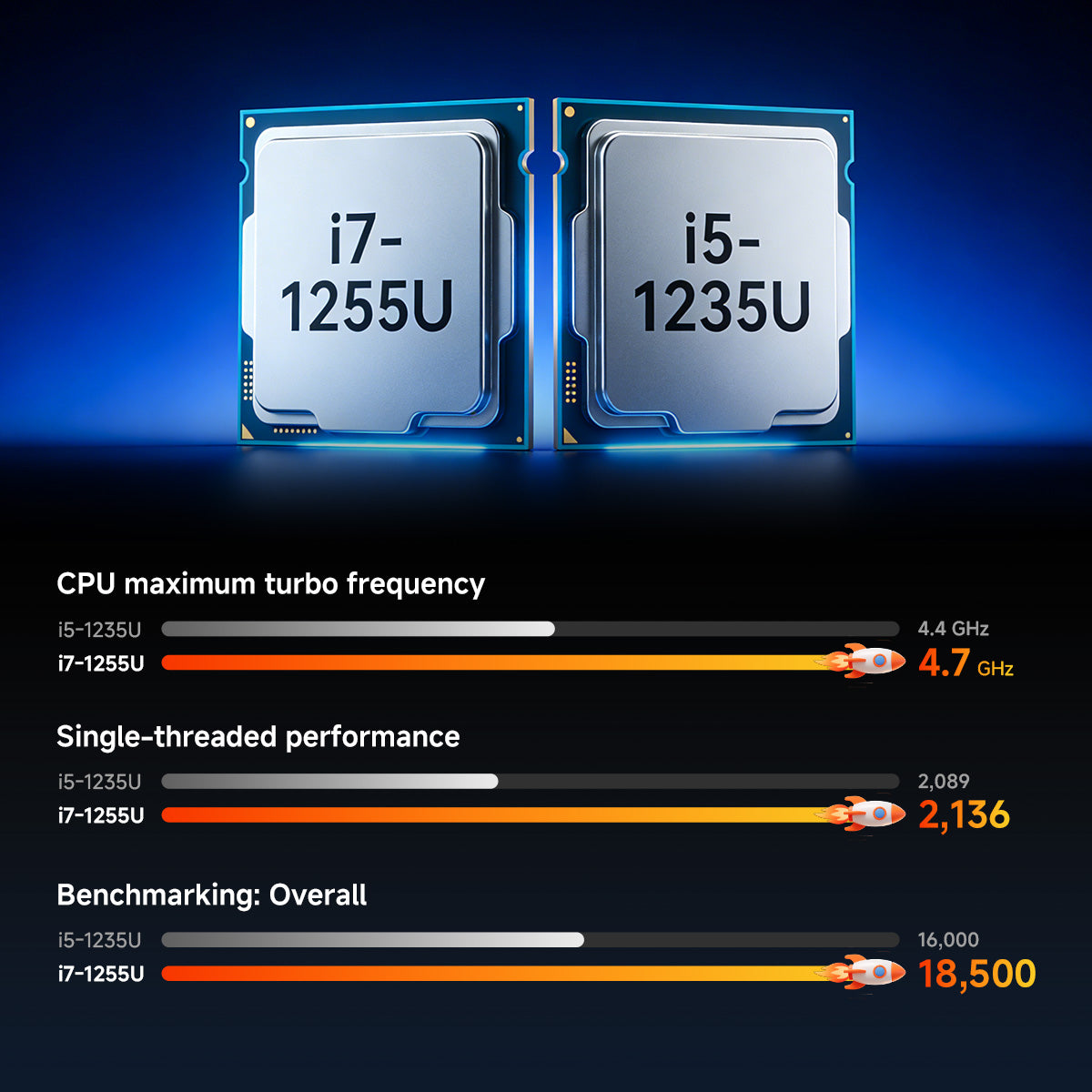

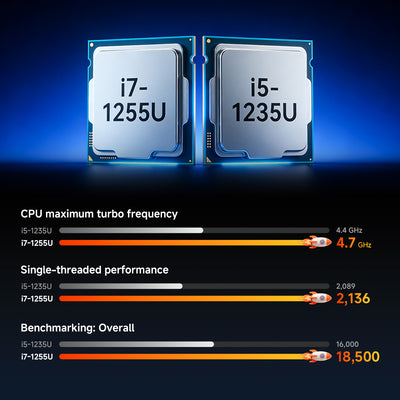

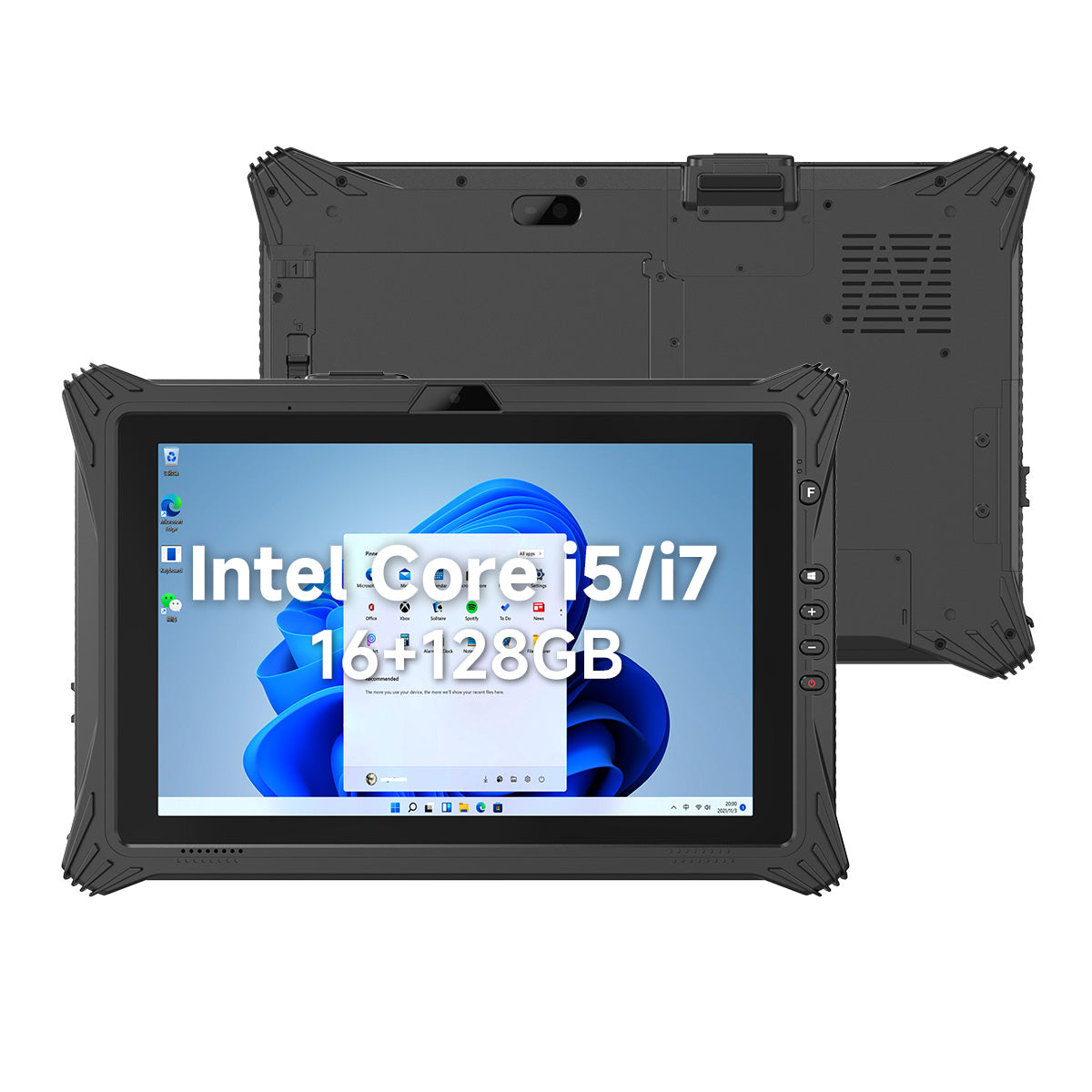

Processor
Intel® Core™ i5-1235U(10 cores, 12 threads,up to 4.4 GHz)/i5-1255U Processor(10 cores, 12 threads, up to 4.7 GHz)
Operating System
Windows 11 Pro

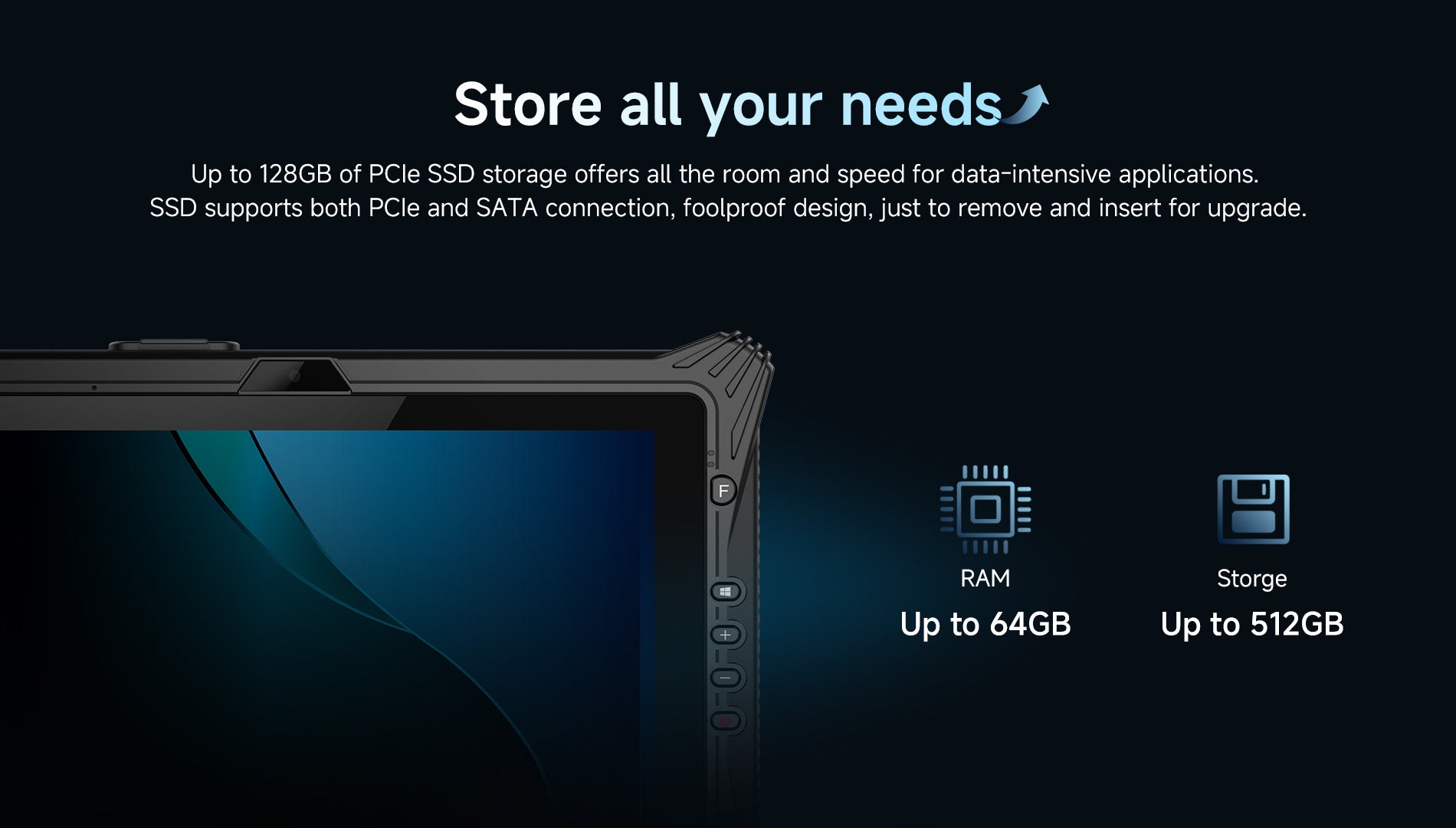

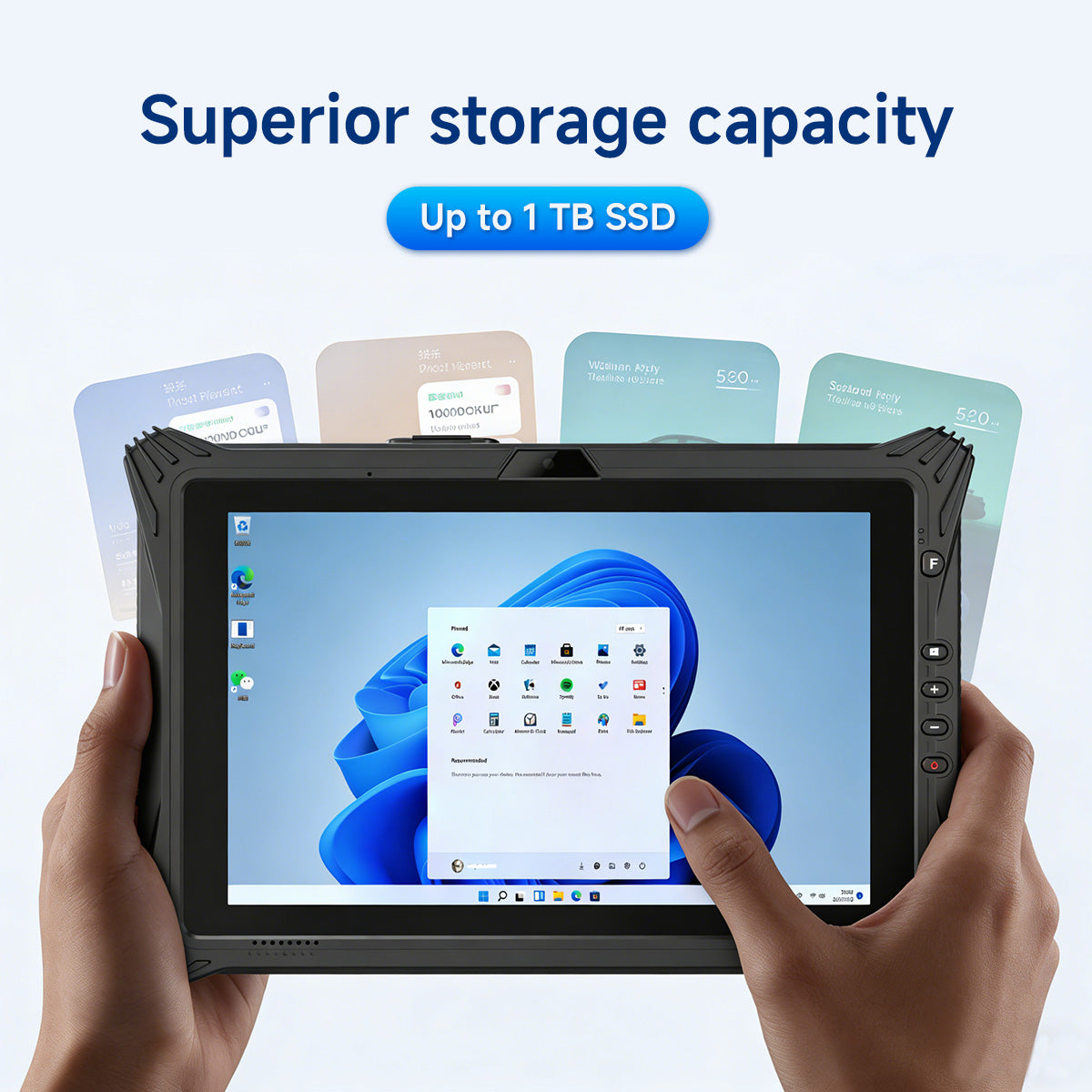

Memory+Storage
RAM: 16GB (DDR4L), ROM: 128GB (SSD)
Camera
Front 200W, Rear 800W

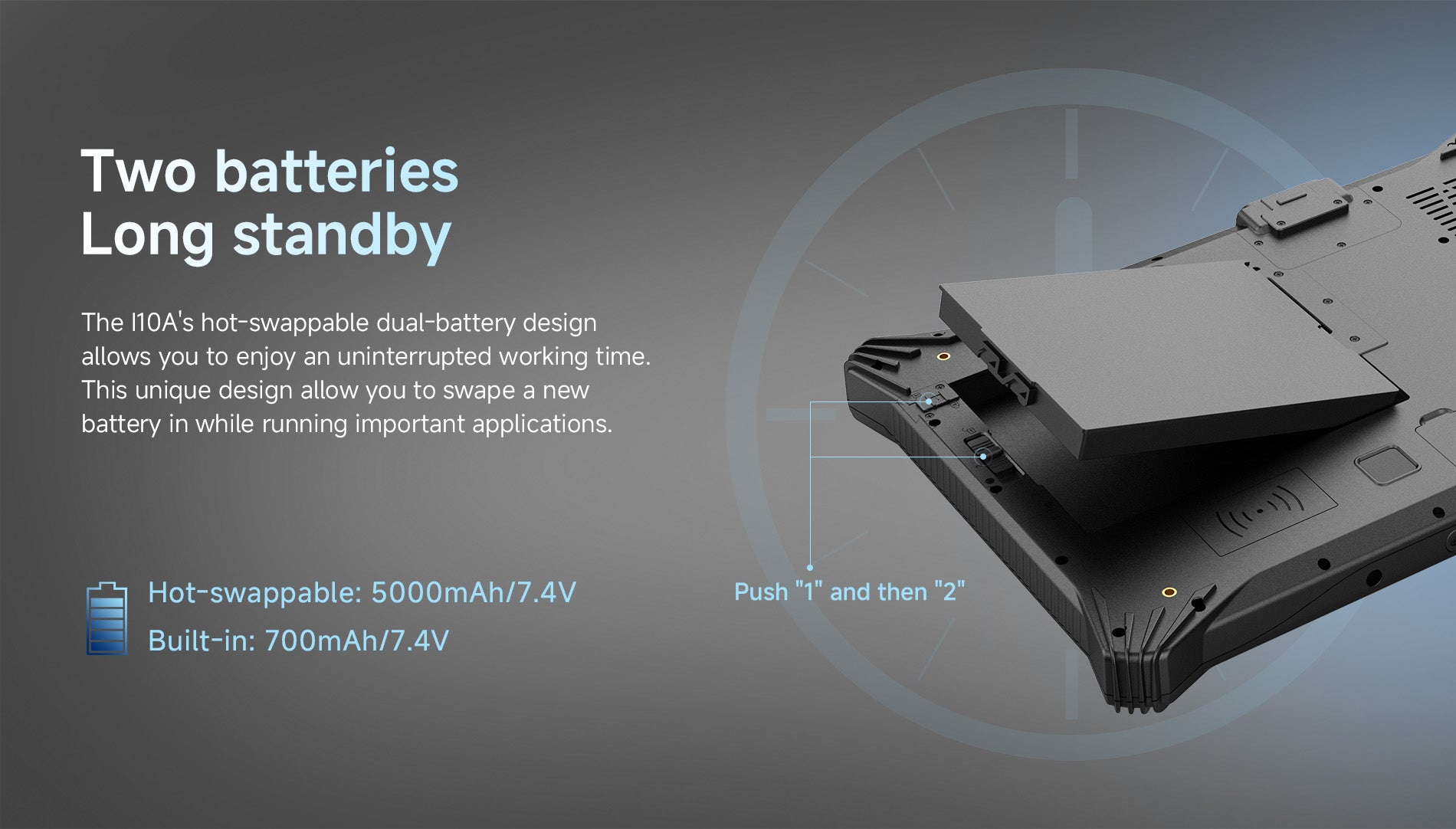

Battery
Build in Lithium-ion polymer battery, 7.4V/860mAhRemovable Li-polyment Battery, 7.4V/5000mAhRTC Battery: Built-in RTC battery
Power
AC adapter: 100-240V, 50Hz-60Hz, 64.98W (19V/3.42A)
Fan
IPX5 fan x 1
Fingerprint
Support

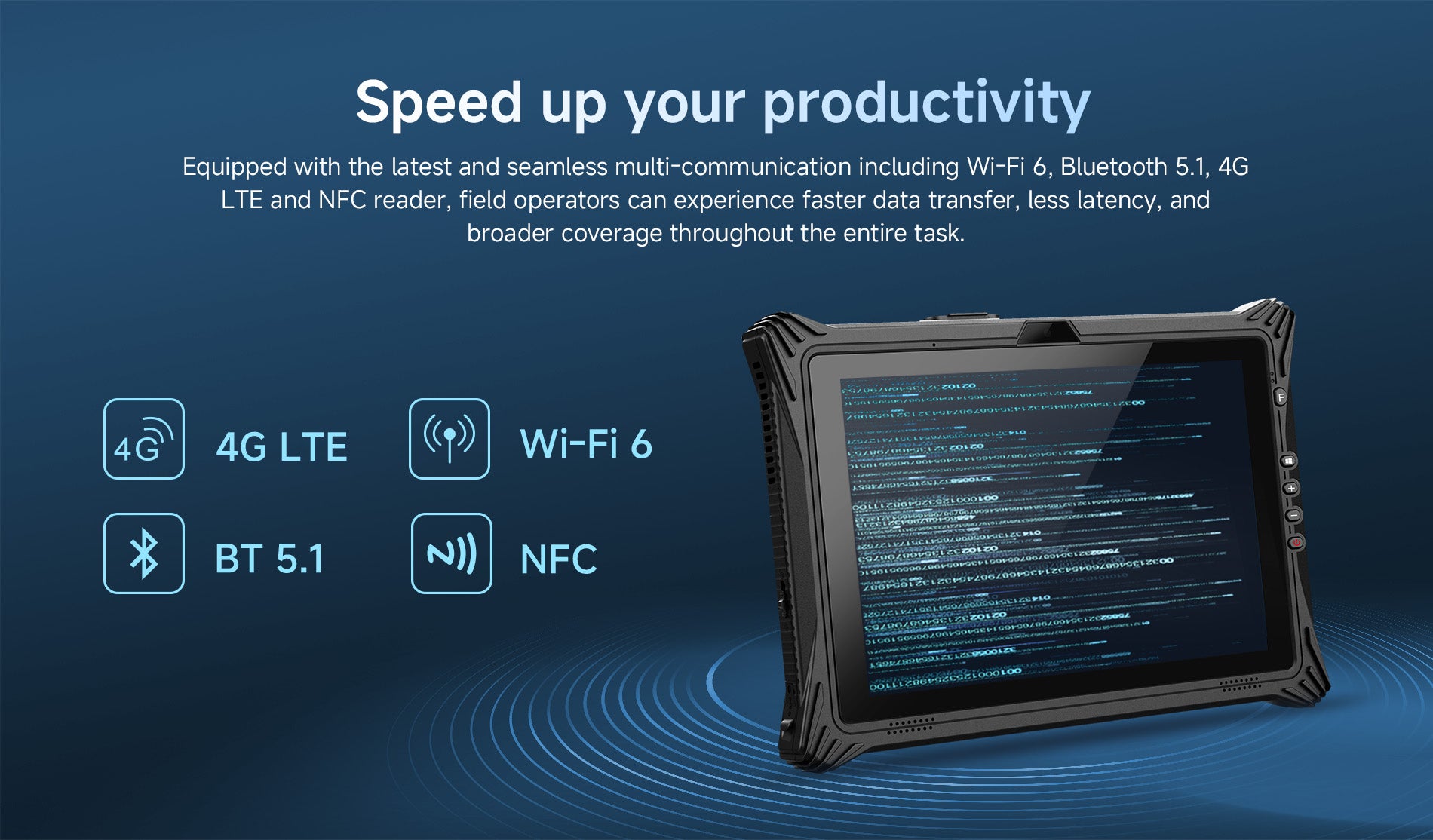

Wireless
WiFi
Wi-Fi 6
WAN
4G LTE
Bluetooth
Bluetooth 5.1
GNSS
GPS
Ruggedness
IP Ratings
IP65
Resistance
1.22m drop MIL-STD-810H
Temperature
Working temperature: -20°C to 60°C,Storage temperature: -30 °C to 70 °CHumidity: 95% Non-Condensing
ESD Protection
±15kV air discharge±8kV contact discharge
Certification
Certification
IP65, CE , FCC, CCC, RoHS, MIL-STD-810H, UN38.3, MSDS, IEC 62133
Applications
Case
Warehouse & Logistics,Manufacturing, Field Service, Construction, Transportation & Fleet Management,Utilities & Infrastructure...
